ShakeOut Scenario 2.0: Dynamic Rupture Modeling of the M7.8 Earthquake on Southern San Andreas Fault and the Resulting Long-Period Ground Motion
Laura Grenot Jones, Clare Ip, Tomoka Ohmori, Ashley Seeman, Chunhui Zhao, Ahmed Elbanna
Additional SCEC Poster Figures

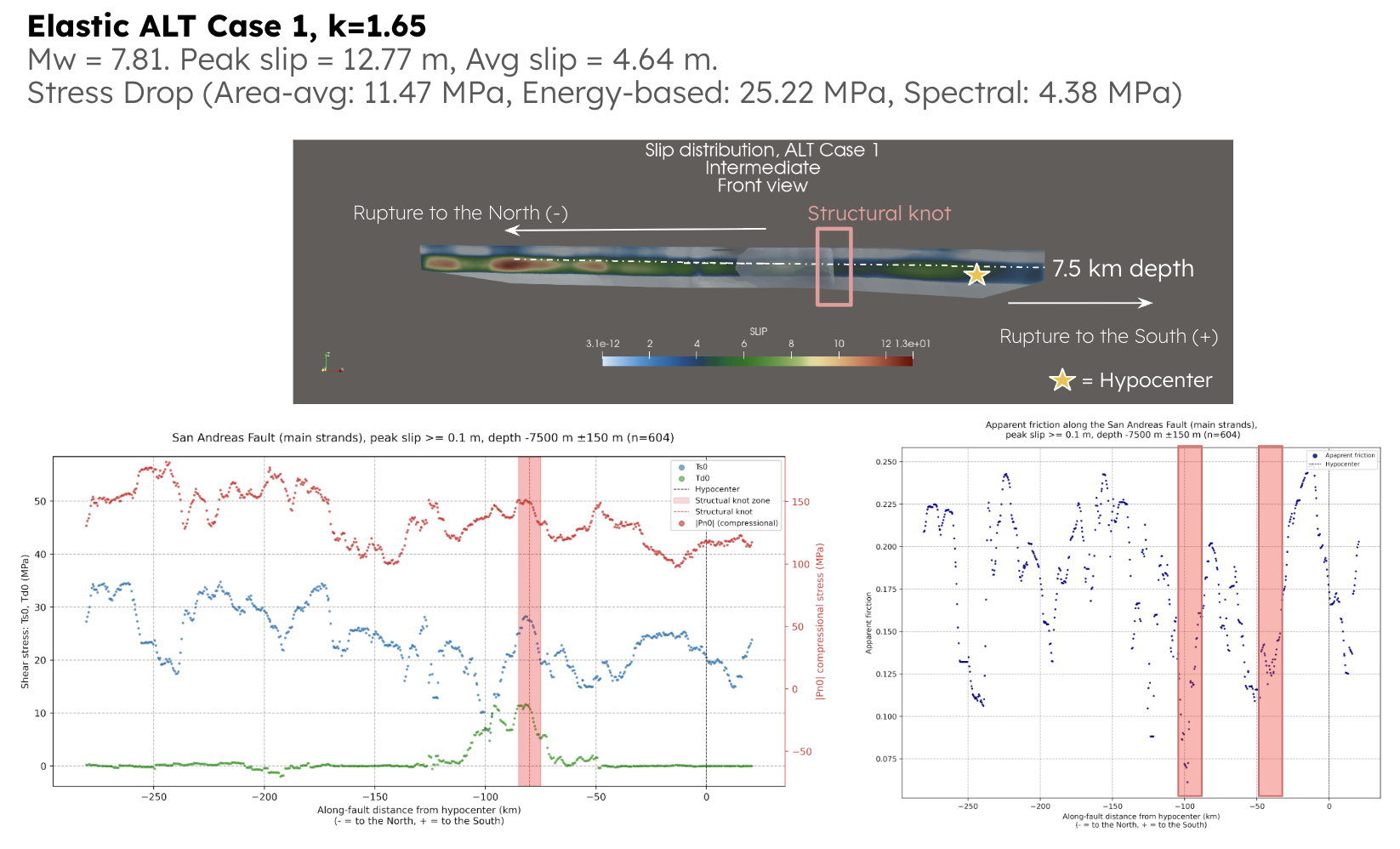

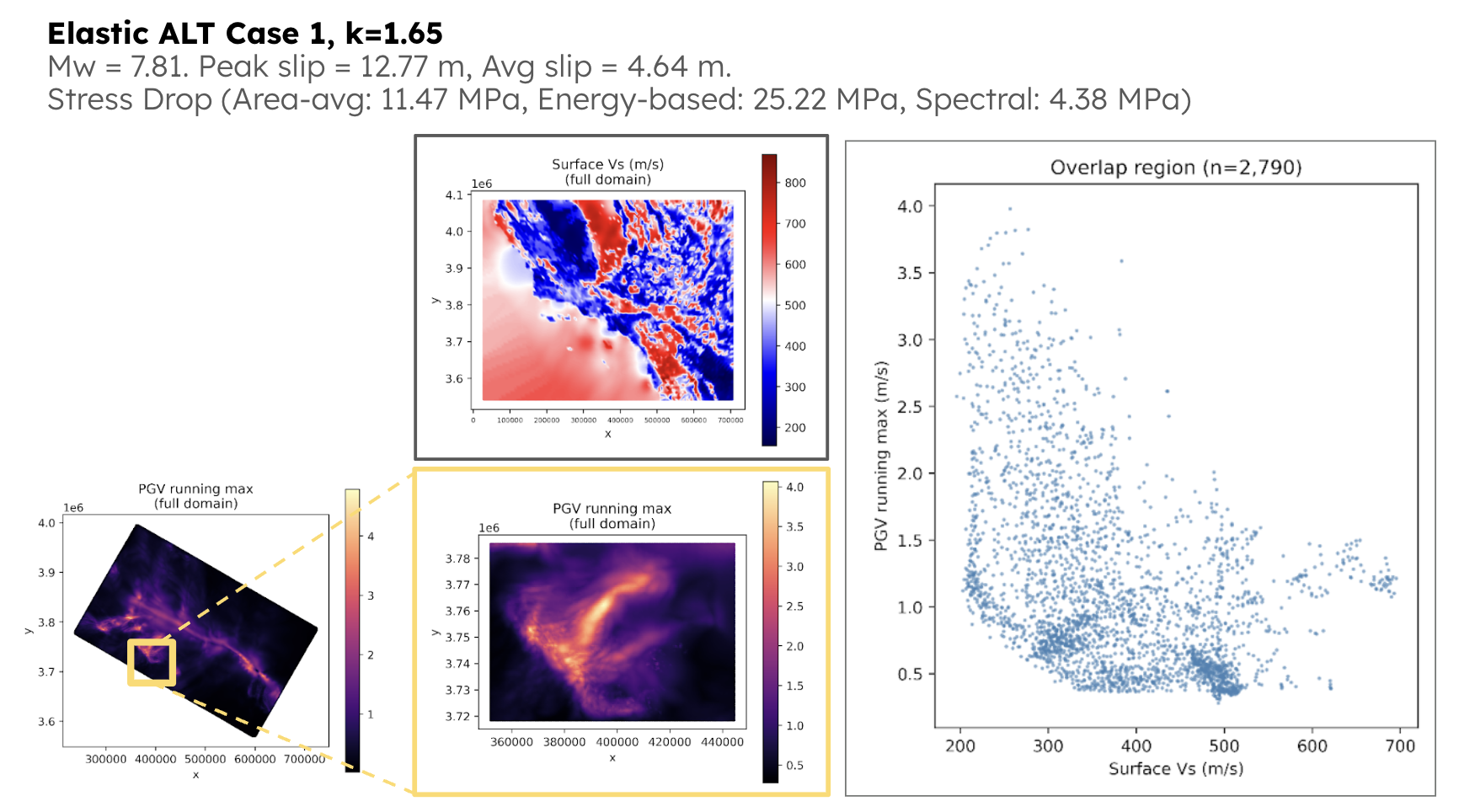

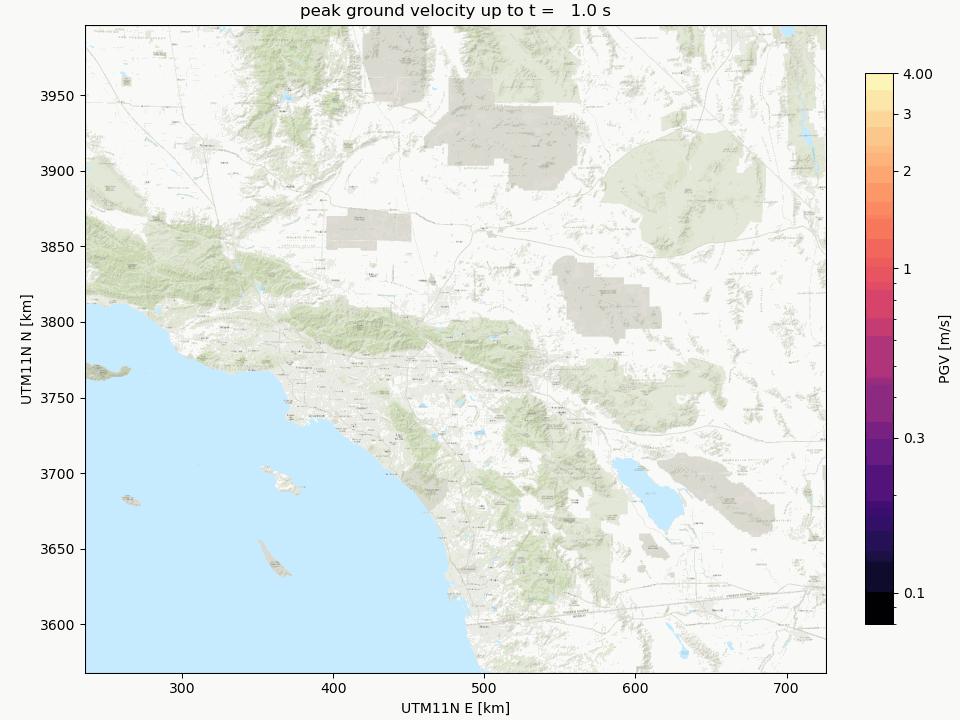

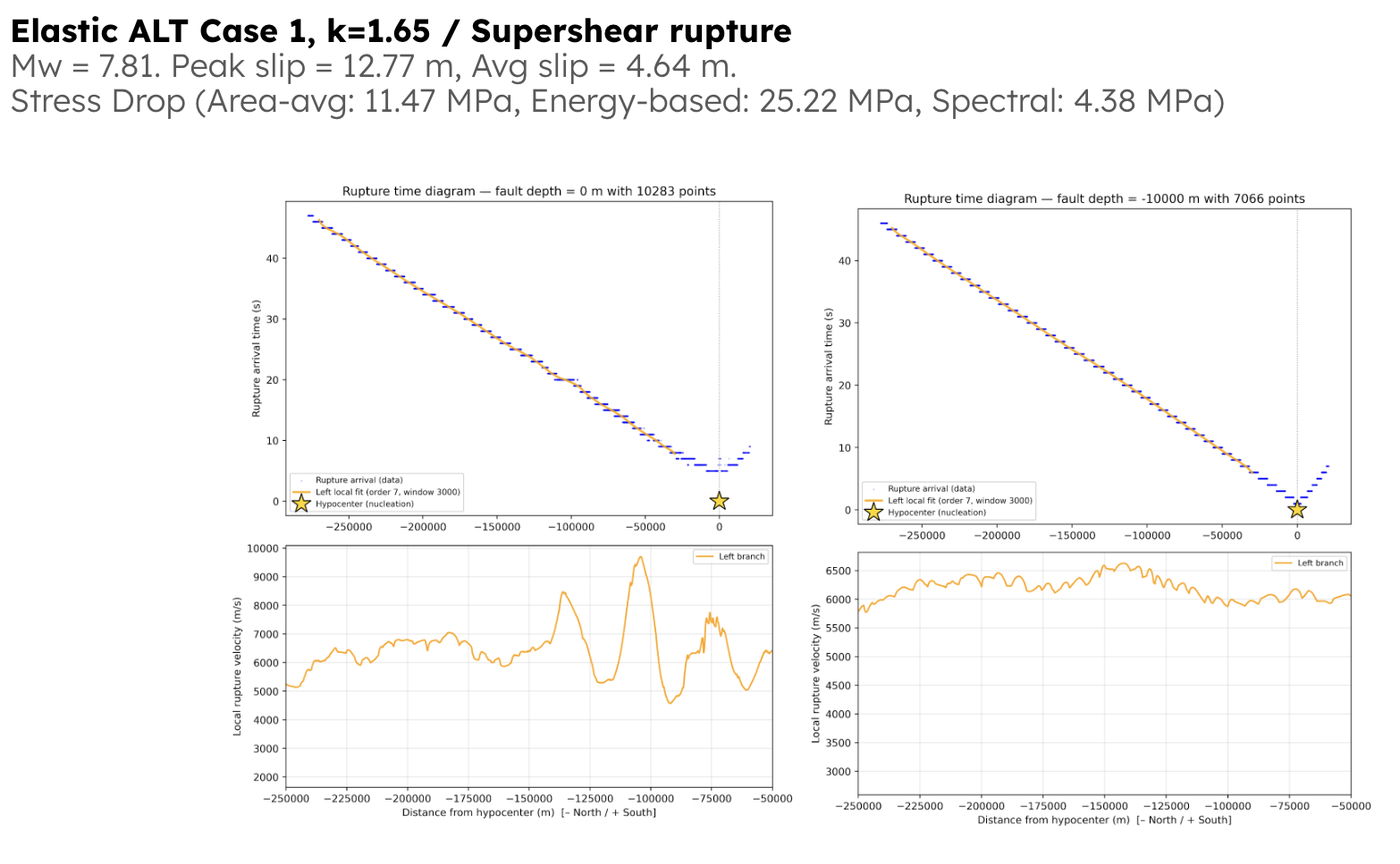

Elastic ALT Case 1, k=1.65
Mw = 7.81. Peak slip = 12.77 m, Avg slip = 4.64 m.
Stress Drop (Area-avg: 11.47 MPa, Energy-based: 25.22 MPa, Spectral: 4.38 MPa)

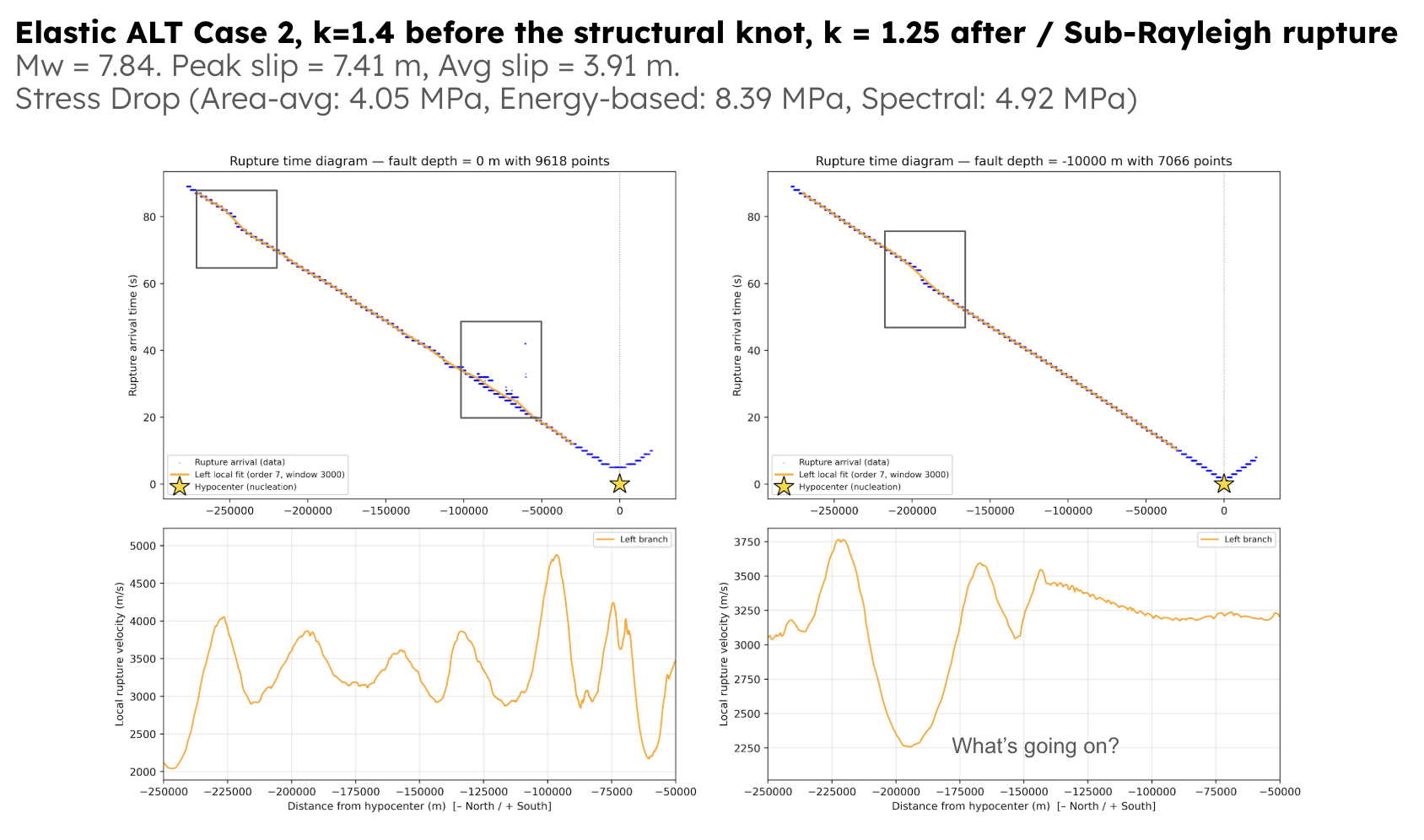

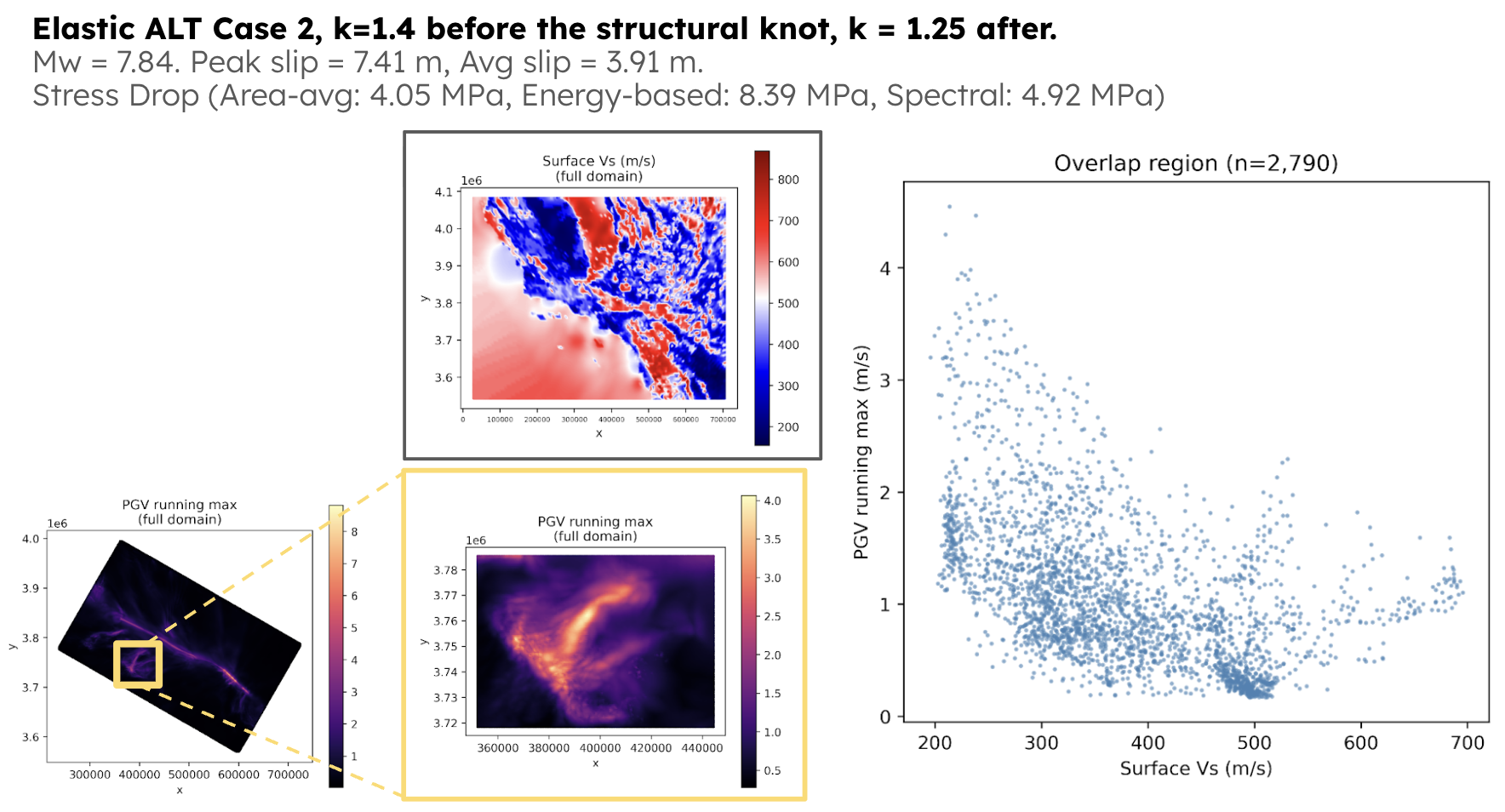

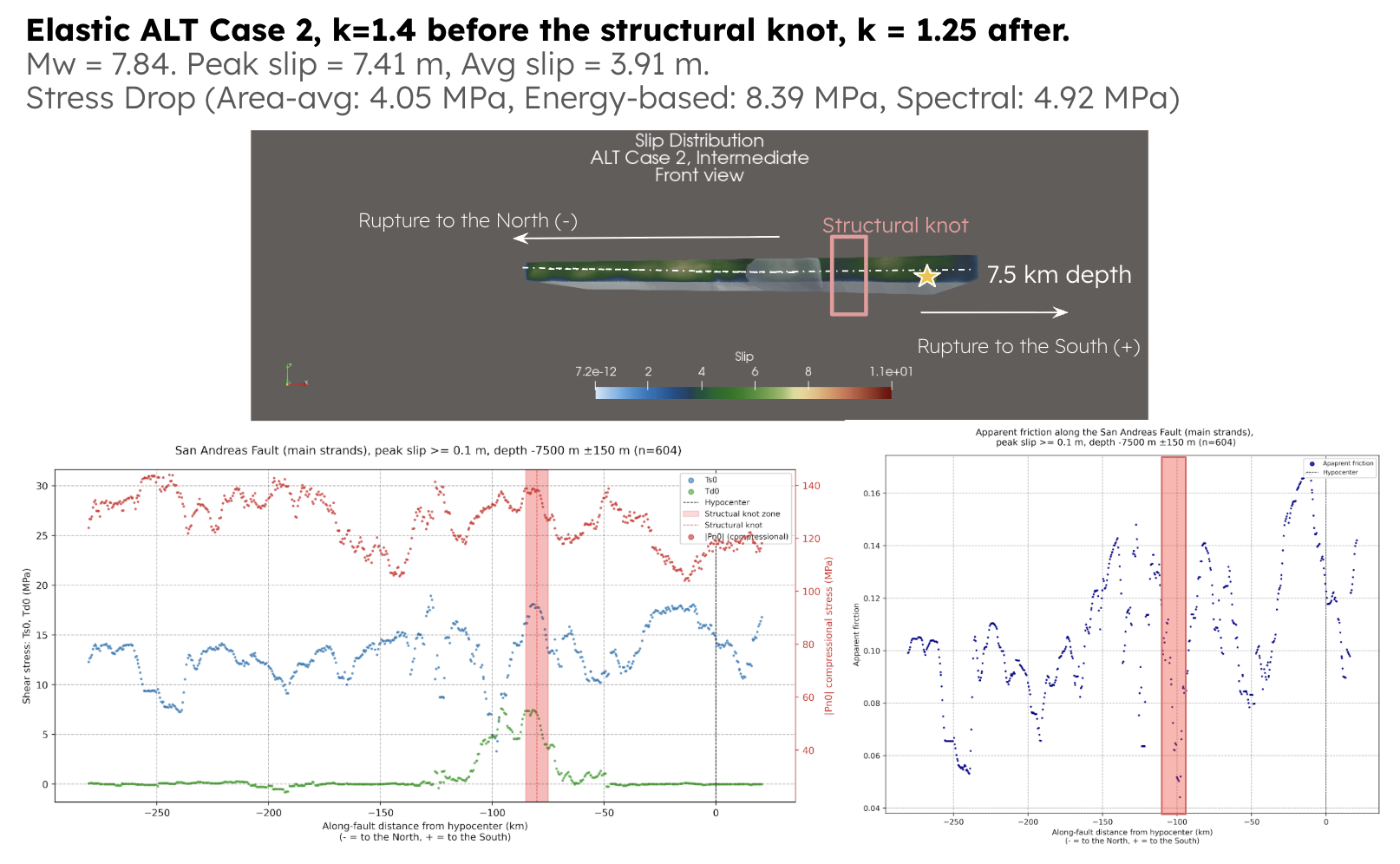

Elastic ALT Case 2, k=1.4 before the structural knot, k = 1.25 after.
Mw = 7.84. Peak slip = 7.41 m, Avg slip = 3.91 m.
Stress Drop (Area-avg: 4.05 MPa, Energy-based: 8.39 MPa, Spectral: 4.92 MPa)

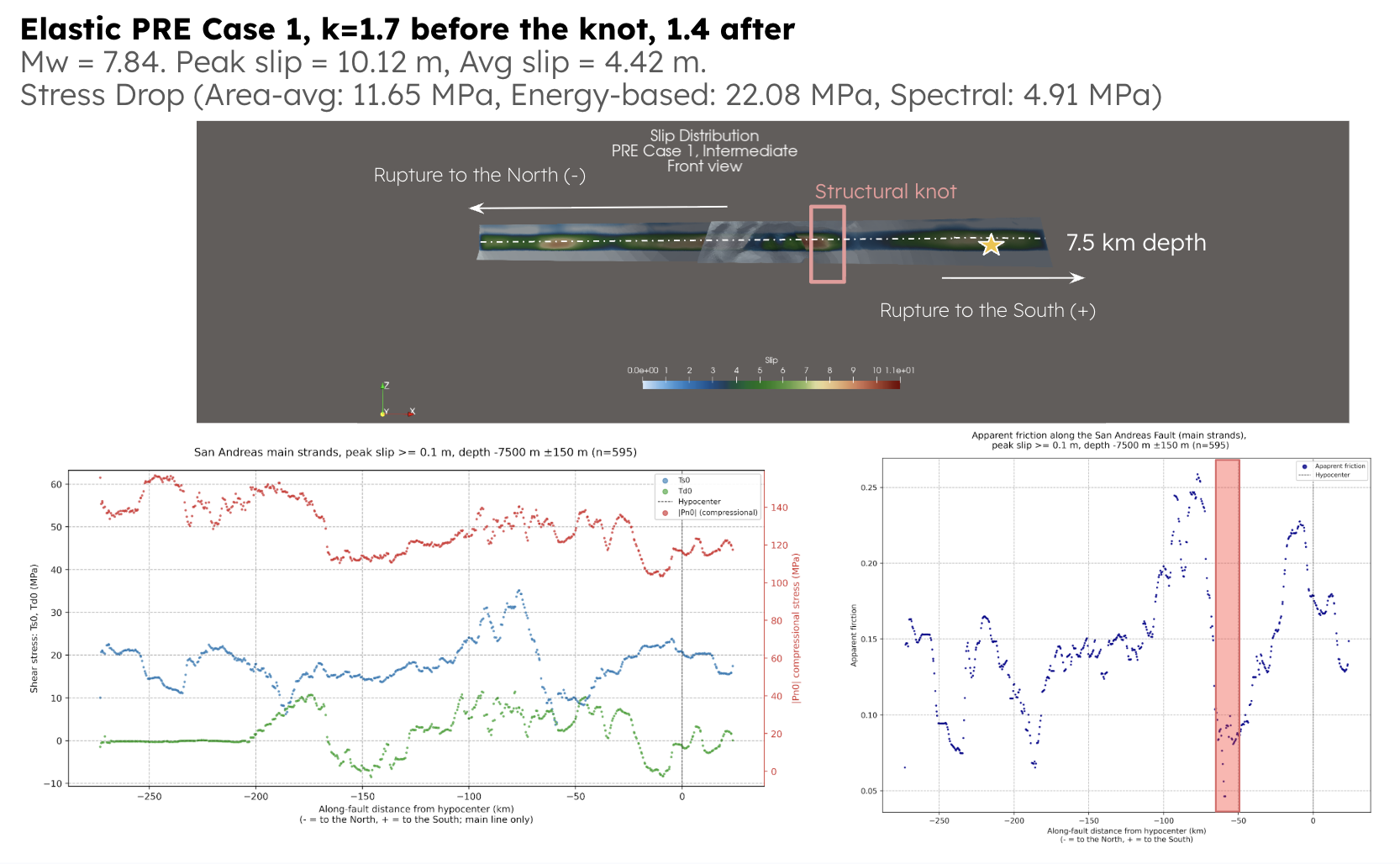

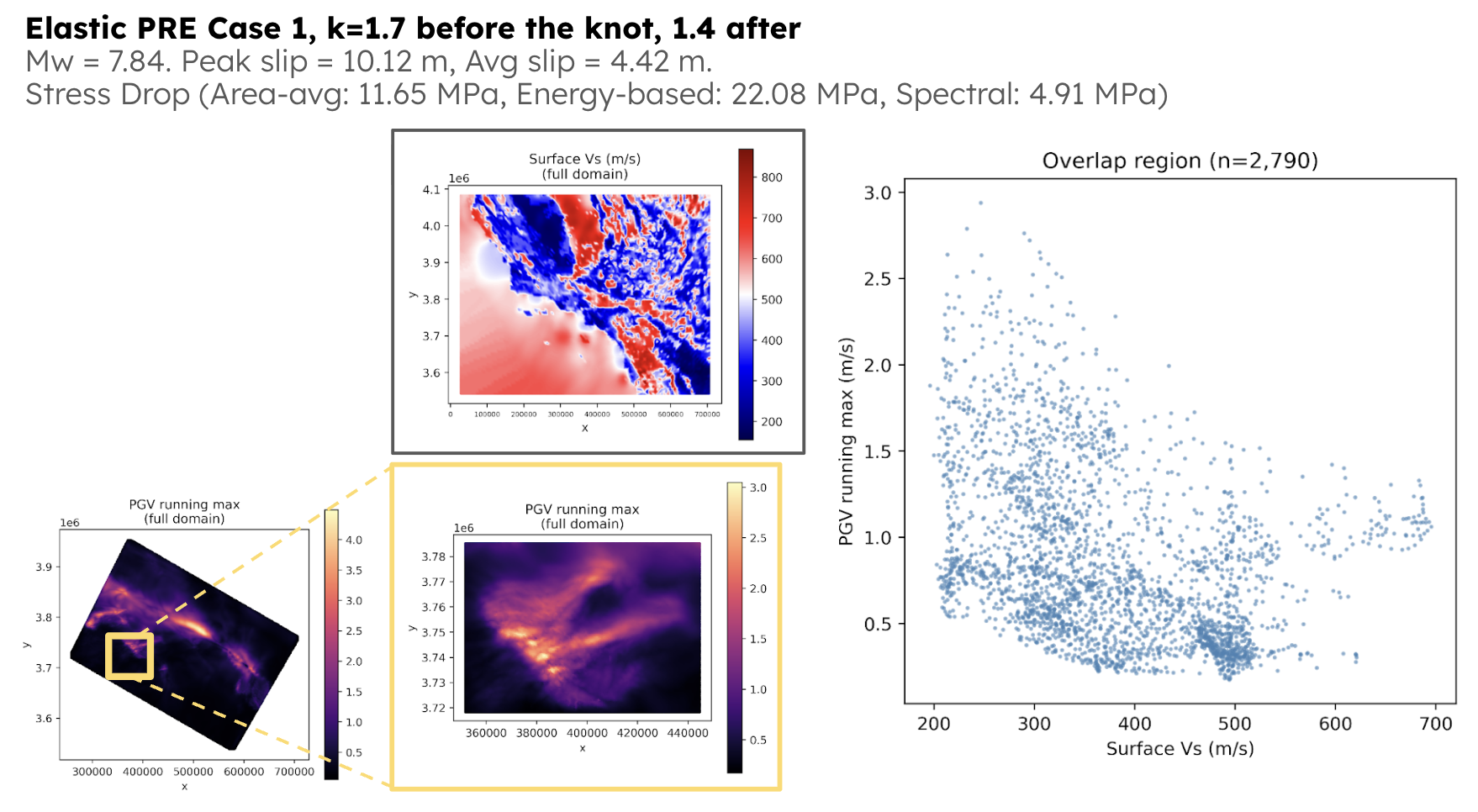

Elastic PRE Case 1, k=1.7 before the knot, 1.4 after
Mw = 7.84. Peak slip = 10.12 m, Avg slip = 4.42 m.
Stress Drop (Area-avg: 11.65 MPa, Energy-based: 22.08 MPa, Spectral: 4.91 MPa)

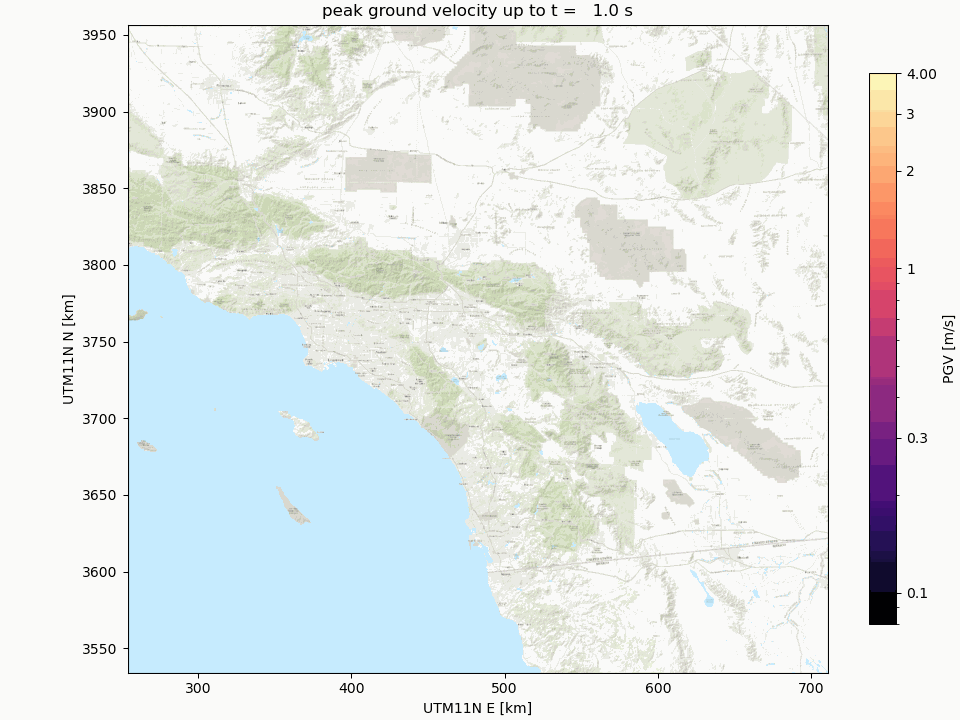

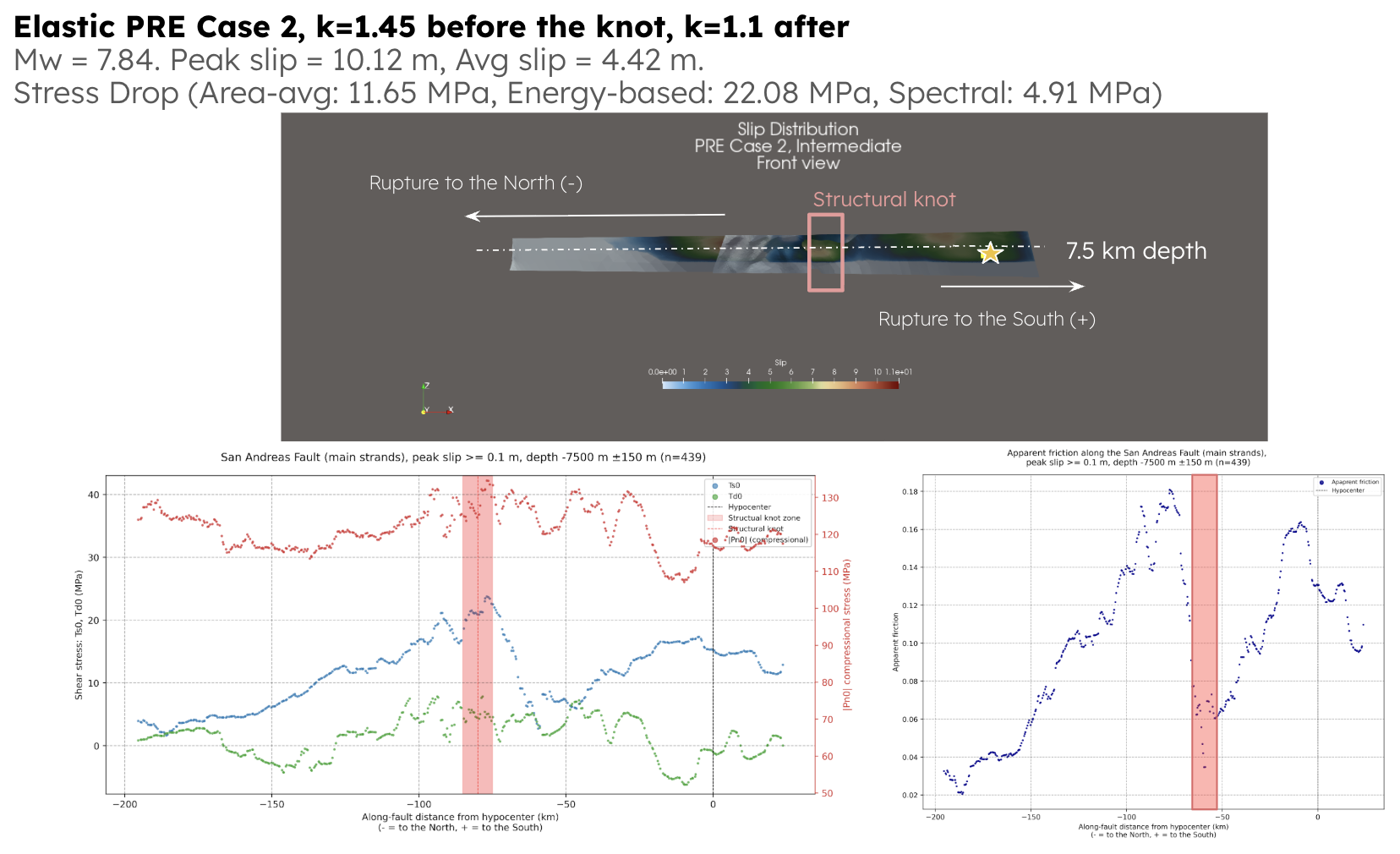

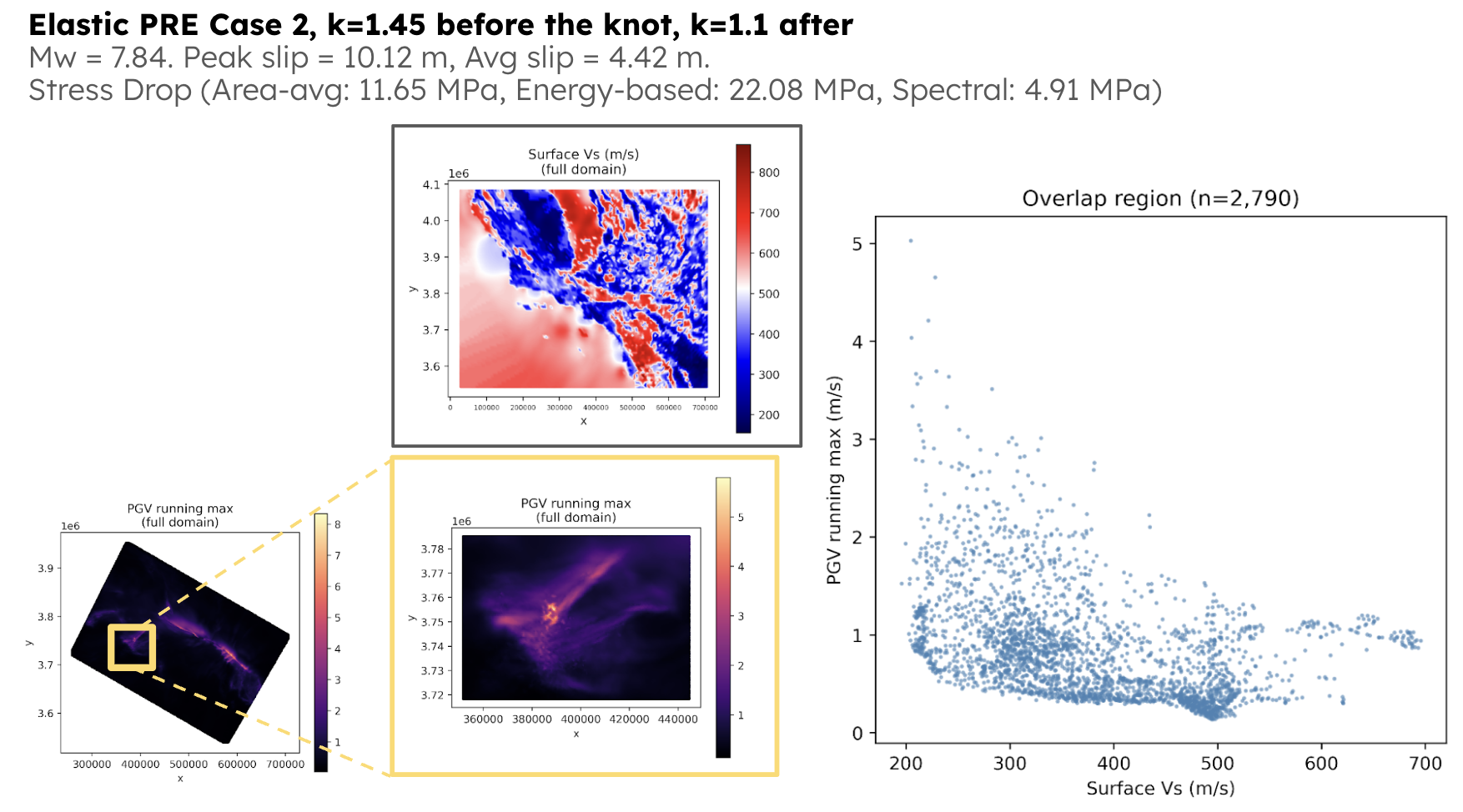

Elastic PRE Case 2, k=1.45 before the knot, k=1.1 after
Mw = 7.84. Peak slip = 10.12 m, Avg slip = 4.42 m.
Stress Drop (Area-avg: 11.65 MPa, Energy-based: 22.08 MPa, Spectral: 4.91 MPa)
